Specification
1 . Input voltage range: 48-85V , Rated input voltage:60/72V , Maximum output current:350Ah

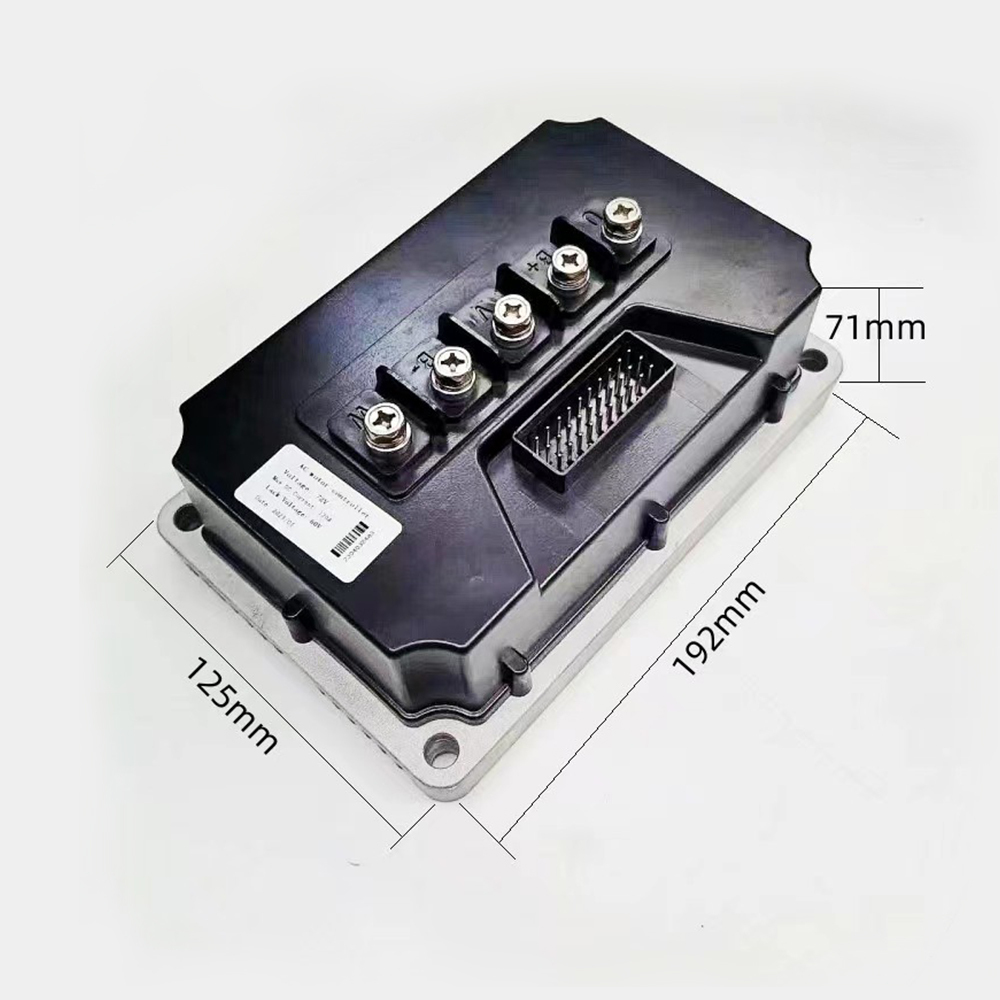

2 . Product Size: 193x125x85mm
3 . Net Weight: 2.2 kgs
4 . Protection grade: IP67
5 . Working environment temperature: -40-80℃
6 . The highest efficiency：98%
7 . Cooling method: Natural air cooling
Features:
1. The mainstream DSP of Texas Instruments (TI) in the United States is adopted as the main control chip as the motor control algorithm platform.
2. Advanced high-power automotive-grade MOSFET tubes are selected as power devices, achieving a low-noise and high-efficiency capability conversion.
3. By adopting advanced vector control algorithms, the controller has achieved precise control over the motor torque and speed, as well as smooth stepless speed regulation.
4. The controller parameters can be set to meet the requirements of different road conditions and various usage environments.
5. By setting the braking mode or activating reverse energy feedback control, the vehicle's driving range can be increased.
6. Reverse speed setting reduces the maximum traveling speed of the vehicle to half of the full speed when reversing, making reversing safer.
7. The fully enclosed housing is waterproof and dustproof, reaching the IP67 grade.
8. Anti-backrolling function on slopes to enhance driving safety.
9. It provides protection functions such as accelerator failure, overvoltage, undervoltage, overcurrent and overheating, which enhances the reliability of the system. CAN bus communication enables real-time communication and interaction with the entire vehicle and instruments.
10. The buzzer alerts various faults, facilitating maintenance.
